Disk damper series
DQ47B
Alternative central-drive disk damper configuration for higher-torque rotational control.
Special torque customization available- Reference dimensions
- Disk damper series Ø47 / Ø57 / Ø63 / Ø70 mm
- Published torque
- Series variants 0.5–2 / 2–6 / 4–7 / 6–10 N·m
Dimensions and torque describe a series. Confirm the exact variant before ordering.
Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- Series variants 0.5–2 / 2–6 / 4–7 / 6–10 N·m
- Rotation
- Bidirectional application matching
- Operating angle
- Continuous rotational damping
- Dimensions
- Disk damper series Ø47 / Ø57 / Ø63 / Ø70 mm
- Shaft / mechanism
- Alternative central drive interface
- Material
- Metal disk-damper assembly
- Application
- Equipment lids, positioning and custom motion systems
- Customization
- Special torque customization available
- MOQ
- Contact us

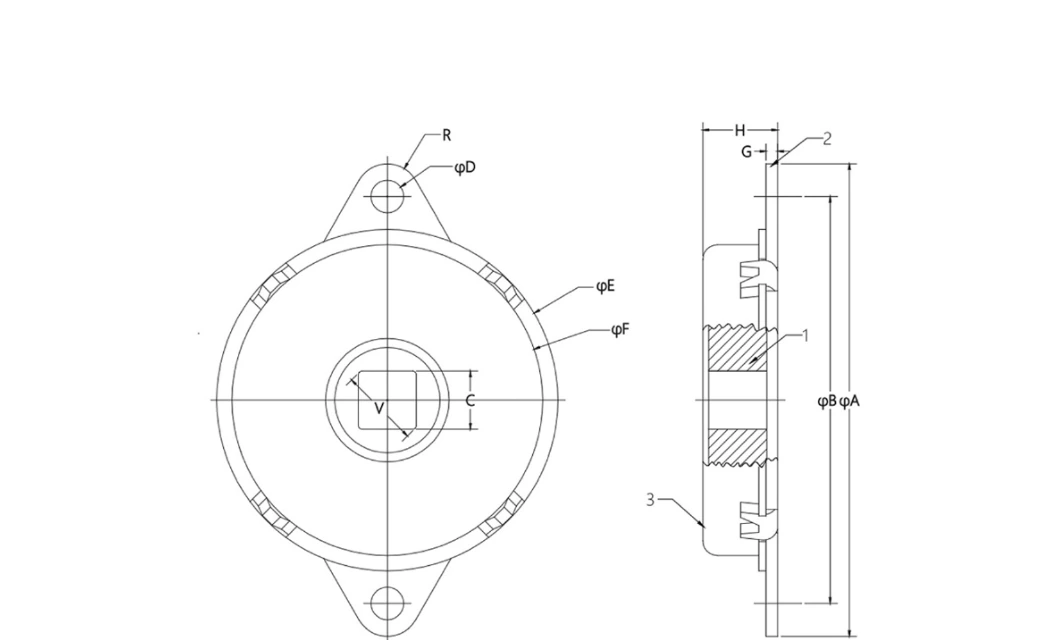

Reference dimensions
These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Technical resources

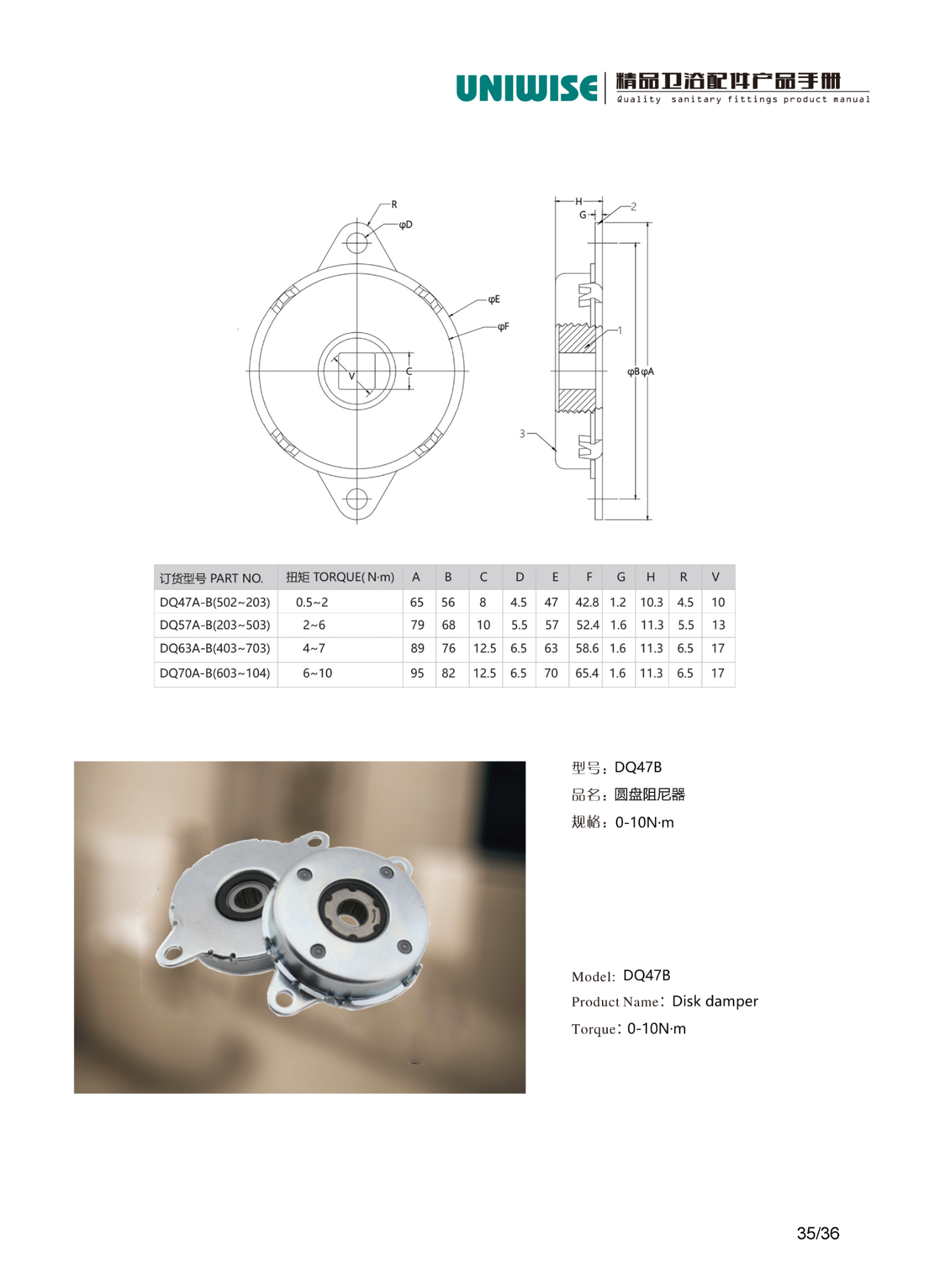

Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
