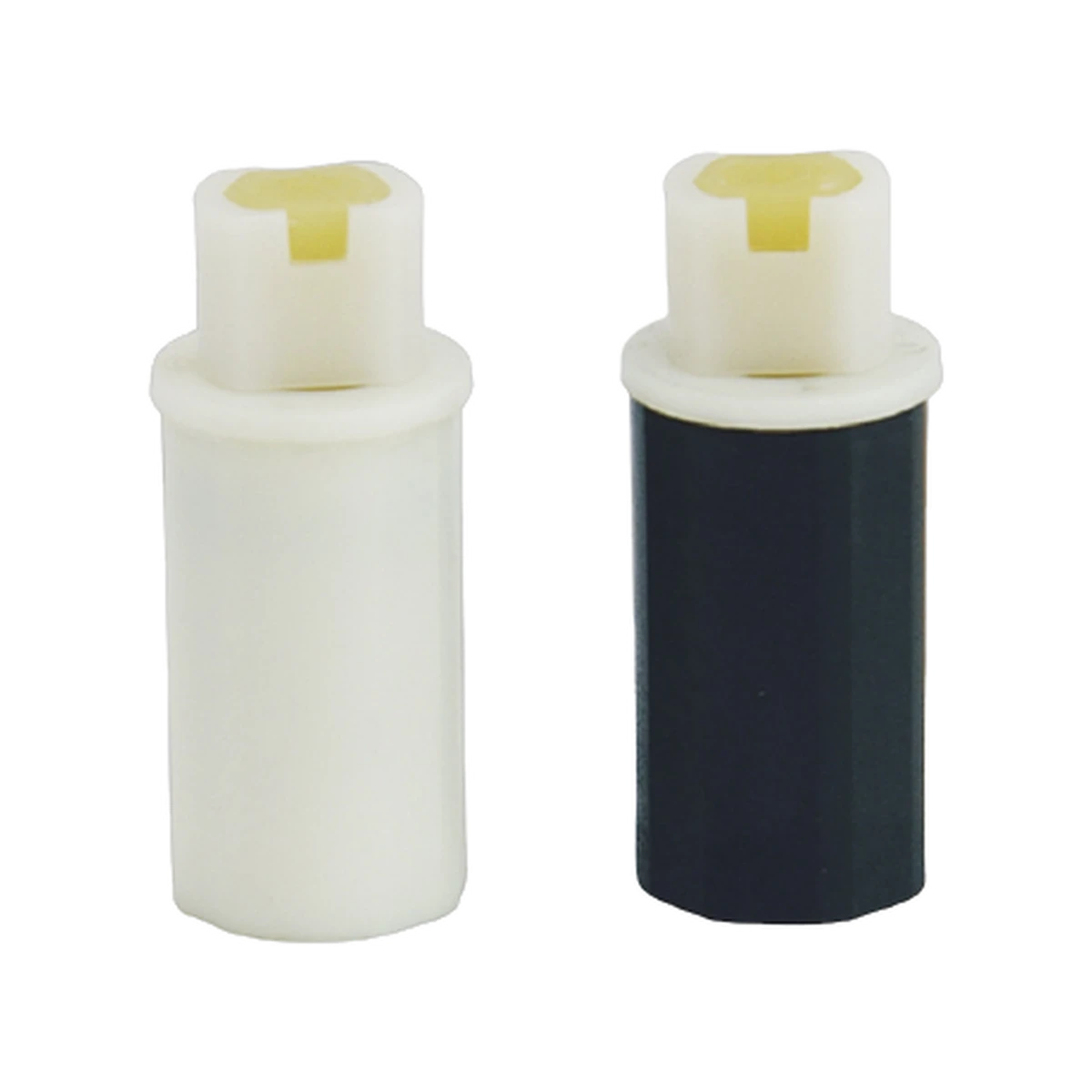

Rotary Damper
WW16H
Controlled soft closing

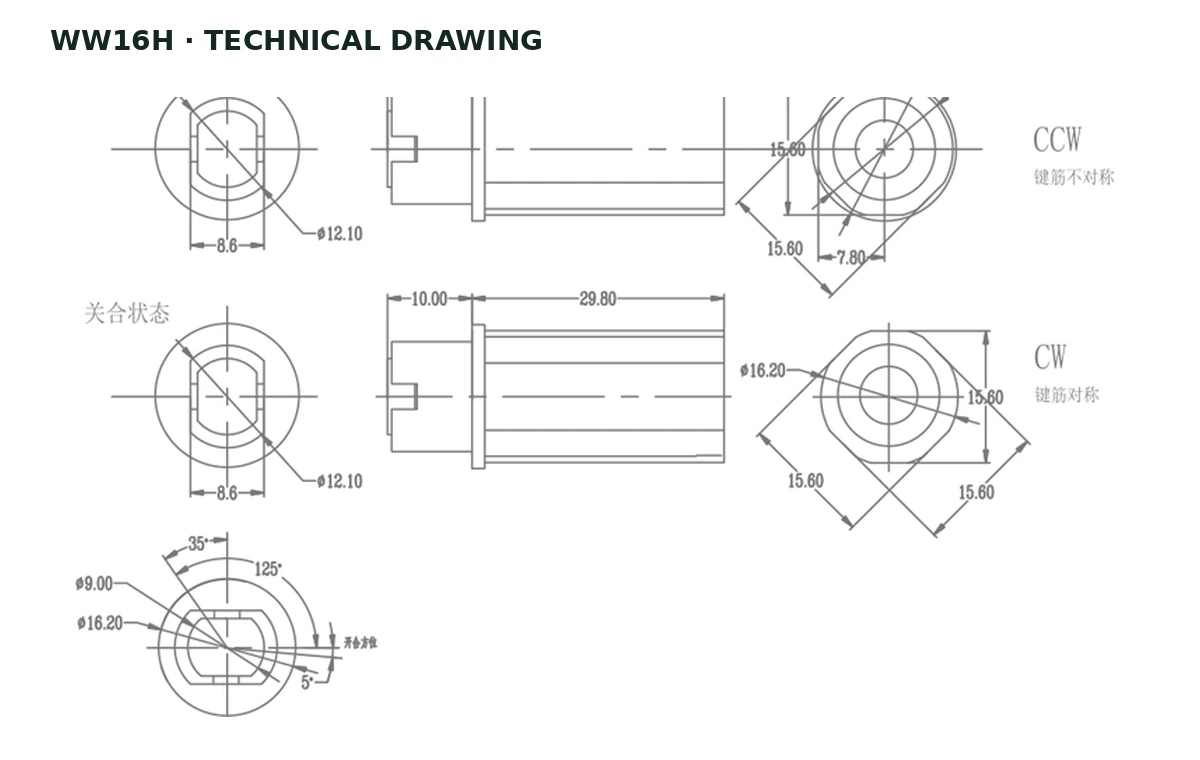

DimensionsØ16.2 mm body / 39.8 mm overall envelopeTorque1.0–2.5 N·m
Product range / Dampers
Rotary dampers
Select the motion function, then compare the torque and installation dimensions.
Not sure which motion function you need?
Soft close: slow a lid or cover as it closes.
Position holding: help retain a position; not interchangeable with soft closing.
Disc / compact: confirm the function, direction and test conditions on the selected model.
Small Damper
WW11H6.4-L
Compact rotary damping
DimensionsØ11 mm profile / 14.5 mm body heightTorque200–1000 gf·cm
Disk Damper
DQ47A
Disk damper series
DimensionsDisk damper series Ø47 / Ø57 / Ø63 / Ø70 mmTorqueSeries variants 0.5–2 / 2–6 / 4–7 / 6–10 N·m
Disk Damper
DQ47B
Disk damper series
DimensionsDisk damper series Ø47 / Ø57 / Ø63 / Ø70 mmTorqueSeries variants 0.5–2 / 2–6 / 4–7 / 6–10 N·m
Positioning Damper
WW16H-360
Position holding / free stop
DimensionsØ16 mm body / 46.7 mm overall lengthTorque2–4 N·m
Positioning Damper
WW15H-360
Position holding / free stop
DimensionsØ15.4 mm body / 68.5 mm overall lengthTorque0.07–0.15 N·m
Positioning Damper
WW-360
Position holding / free stop
Dimensions12 mm overall / Ø10-Ø8 mm stepped profileTorque2–3 N·m
Rotary Damper
WW20H
Controlled soft closing
DimensionsØ20 mm body / 47 mm overall lengthTorque1.0–3.0 N·m
Rotary Damper
WW20H2S
Controlled soft closing
DimensionsØ20.3 mm body / 80 or 94 mm overallTorque1.0–3.0 N·m
Rotary Damper
WW20H8S
Controlled soft closing
DimensionsØ19.85 mm body / 48 mm overall lengthTorque1.0–3.0 N·m
Rotary Damper
WW20J-24
Controlled soft closing
DimensionsØ20 mm body / 49 mm overall lengthTorque1.0–4.0 N·m
Rotary Damper
WW20J
Controlled soft closing
DimensionsØ20 mm body / 47 mm overall lengthTorque1.0–4.0 N·m
Rotary Damper
WW20J4S
Controlled soft closing
DimensionsØ21.5 mm max profile / 37 mm overall lengthTorque1.0–4.0 N·m
Rotary Damper
WW20P
Controlled soft closing
DimensionsØ19.85 mm body / 58.8 mm overall lengthTorque1.0–3.0 N·m
Rotary Damper
WW20PF
Controlled soft closing
DimensionsØ19.85 mm body / 56.3 mm overall lengthTorque1.0–3.0 N·m
Rotary Damper
WW21J-12
Controlled soft closing
DimensionsØ21 mm body / 37 mm overall lengthTorque1.0–4.0 N·m
Rotary Damper
WW21J-16
Controlled soft closing
DimensionsØ21 mm body / 41 mm overall lengthTorque1.0–4.0 N·m
Rotary Damper
WW22H3S
Controlled soft closing
DimensionsØ22.5 mm max body / 65 mm overall lengthTorque1.0–3.0 N·m
Rotary Damper
WW22J4S
Controlled soft closing
DimensionsØ23 mm max profile / 79 mm overall lengthTorque1.0–4.0 N·m
Rotary Damper
WW23H4S
Controlled soft closing
DimensionsØ22.5-23 mm body / 85.5 mm overall lengthTorque1.0–3.0 N·m
Application support
Need a different specification?
Send your installation dimensions, load and movement requirement.
