Controlled soft closing
WW20H8S

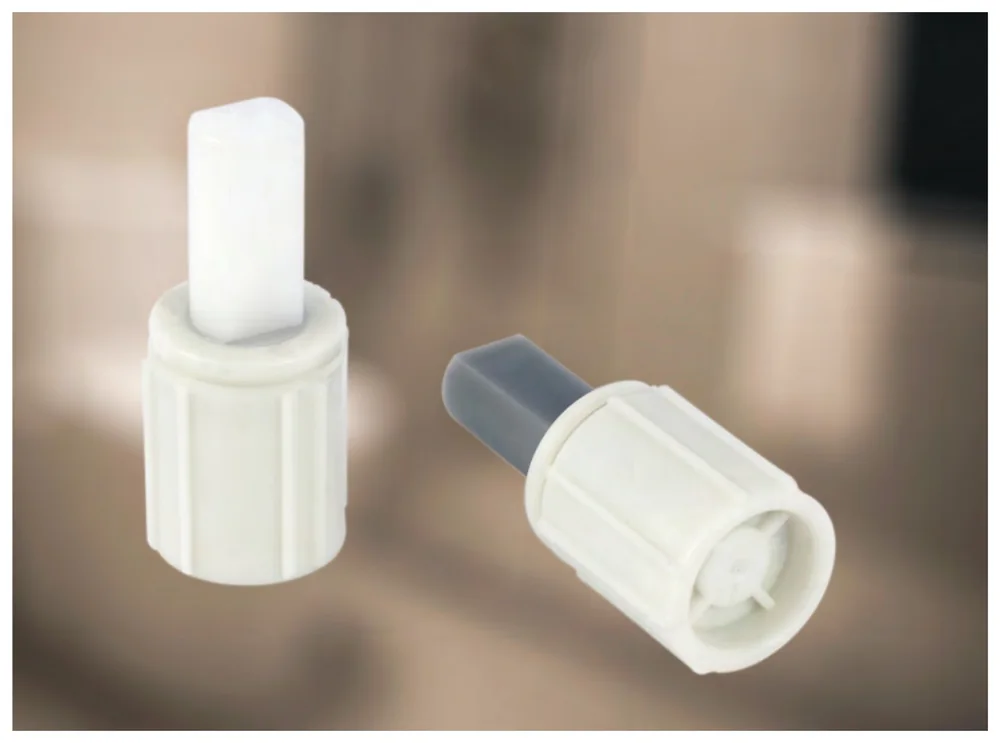

Rotary Damper WW20H8S
Compact rotary damper for controlled soft-close hinge systems.
Special torque customization available- Reference dimensions
- Ø19.85 mm body / 48 mm overall length
- Published torque
- 1.0–3.0 N·m

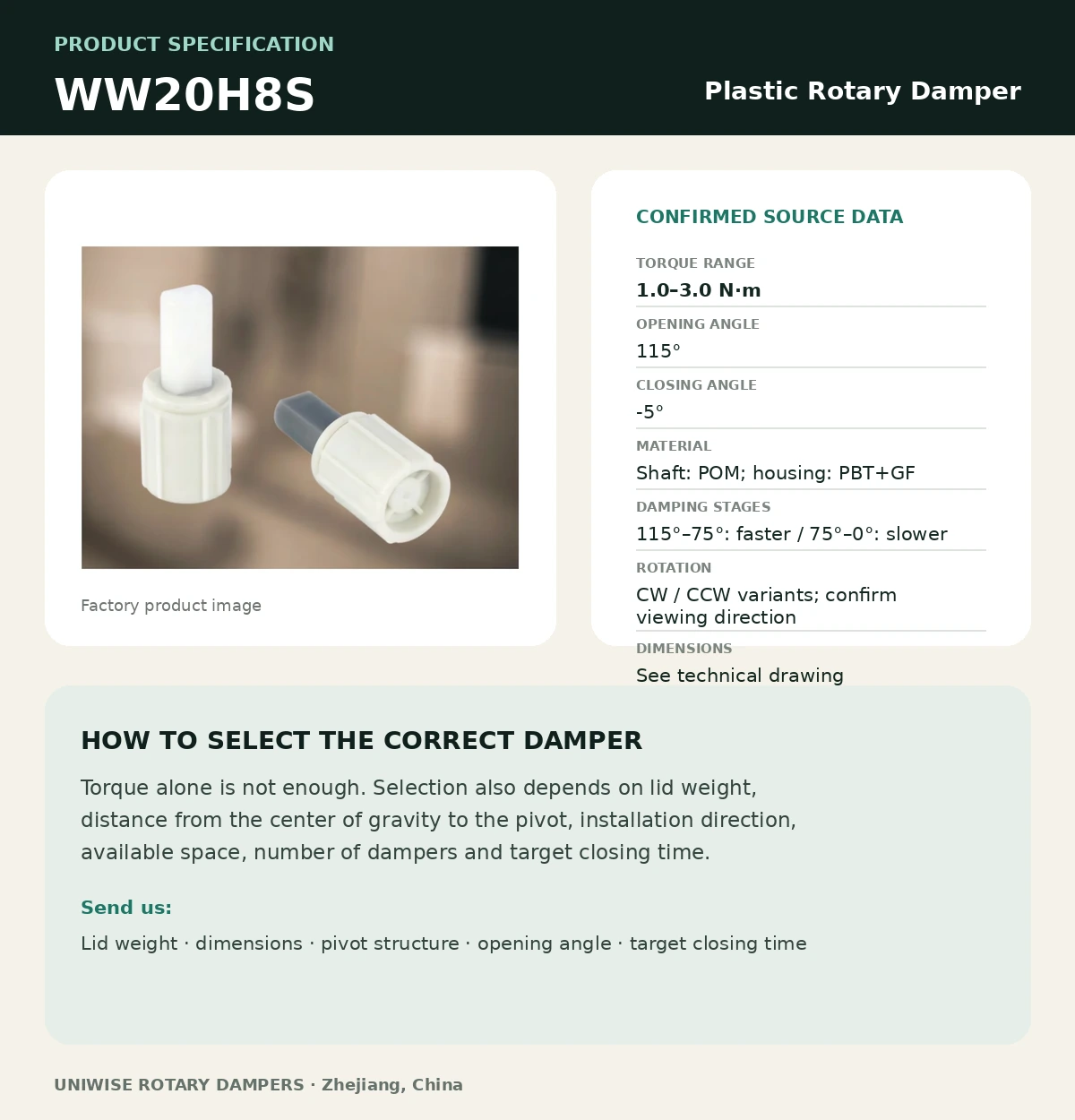

Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 1.0–3.0 N·m
- Rotation
- CW / CCW variants
- Operating angle
- Opening 115° / closing -5°
- Dimensions
- Ø19.85 mm body / 48 mm overall length
- Shaft / mechanism
- POM
- Material
- Shaft: POM; housing: PBT+GF
- Application
- Toilet seat / appliance / custom lid
- MOQ
- Contact us
- Customization
- Special torque customization available

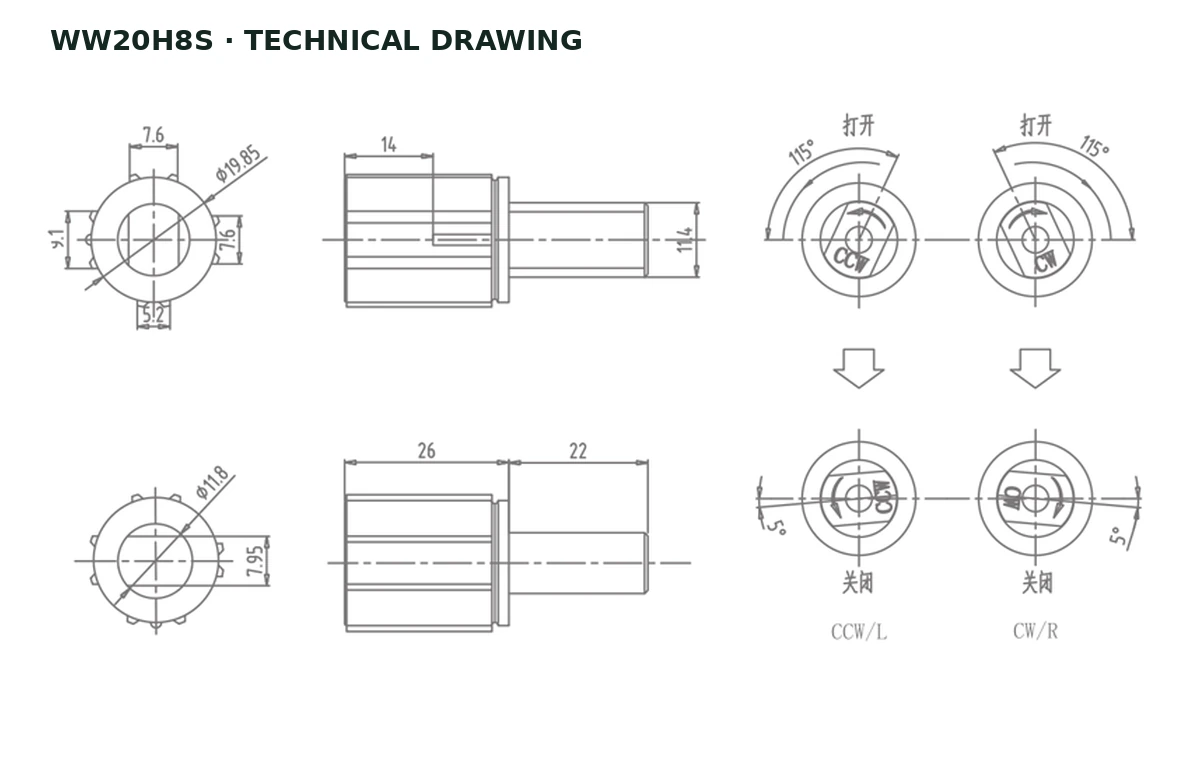

Reference dimensions
These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Body diameter: Ø19.85 mm
Overall length: 48 mm
Body section: 26 mm
Output length: 22 mm
Output shaft: Ø14 mm
Drive: Ø11.8 mm
Drive flat: 7.95 mm
Technical resources
Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
