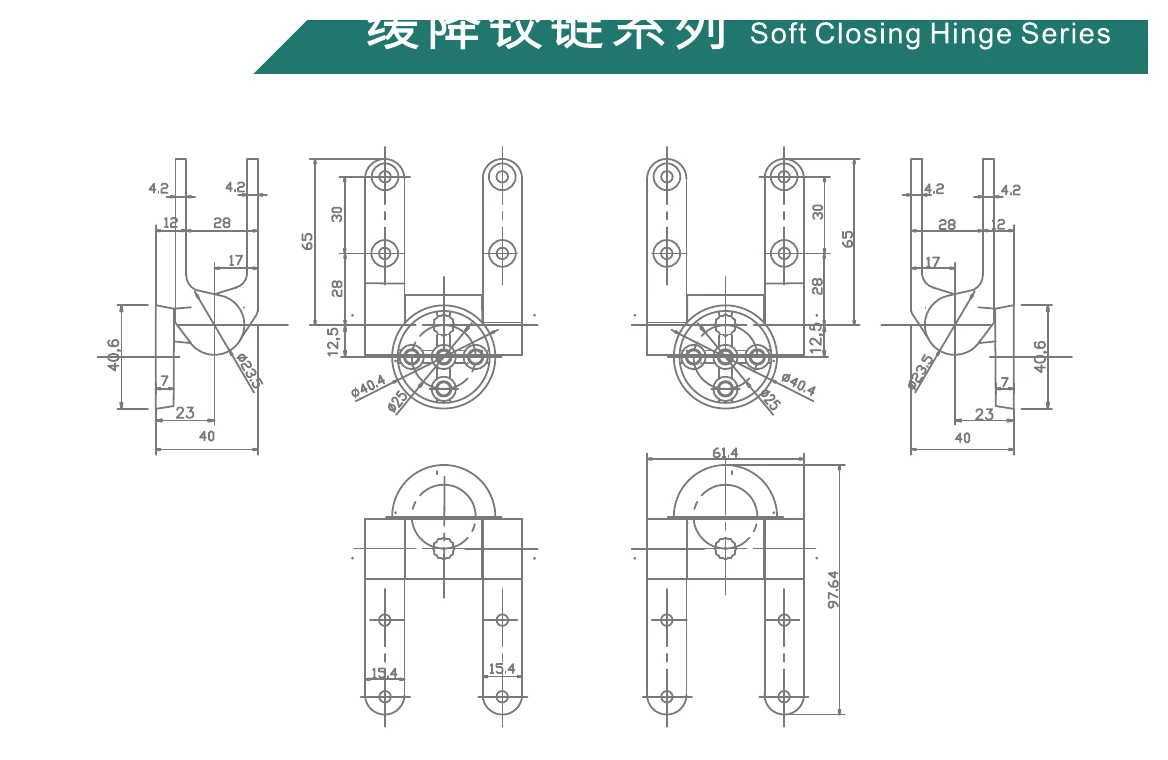

Soft-Close Hinge
BH28
Soft-close hinge
Dimensions61.4 mm assembly width / 97.64 mm overall heightTorque1.0–4.0 N·m
Product range / Hinges
Soft-close toilet-seat hinges
Compare hinge structures, quick-release options and mounting dimensions for your seat system.
What should I check before selecting a hinge?
Check the mounting span, seat geometry, release mechanism, material and load. Final fit and closing performance need to be verified in the actual assembly.
Soft-Close Hinge
BH22
Soft-close hinge
Dimensions67.72 mm assembly width / 76.67 mm overall heightTorque1.0–4.0 N·m
Soft-Close Hinge
BH81
Soft-close hinge
Dimensions61.41 mm assembly width / 82.38 mm overall heightTorque1.0–4.0 N·m
Soft-Close Hinge
BH21
Soft-close hinge
Dimensions57.4 mm assembly width / 62.76 mm overall heightTorque1.0–4.0 N·m
Soft-Close Hinge
YJ004
Soft-close hinge
Dimensions216 mm overall width / 210 mm mounting spanTorque1.0–4.0 N·m
Soft-Close Hinge
BH29Z
Soft-close hinge
Dimensions71.4 mm assembly width / 76.75 mm overall heightTorque1.0–4.0 N·m
Soft-Close Hinge
BH29S
Soft-close hinge
Dimensions71.4 mm assembly width / 95 mm overall heightTorque1.0–4.0 N·m
Soft-Close Hinge
BH23
Soft-close hinge
Dimensions61.54 mm assembly width / 62.22 mm overall heightTorque1.0–4.0 N·m
Application support
Need a different specification?
Send your installation dimensions, load and movement requirement.
