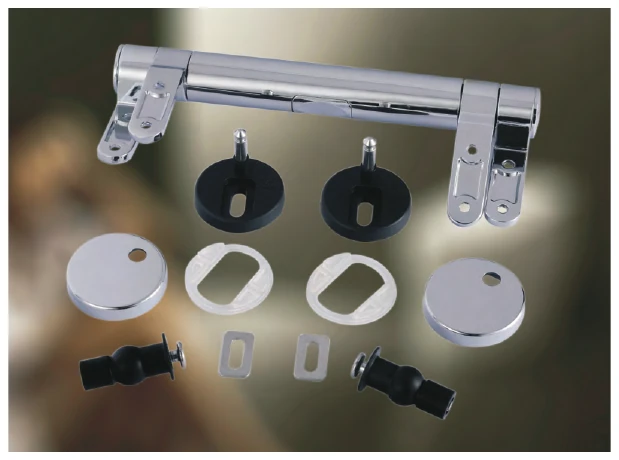

Soft-close hinge
YJ004
One-Button Quick-Release Hinge
Soft-close toilet seat hinge with catalogue-confirmed dimensions and torque range.
Special torque customization available- Reference dimensions
- 216 mm overall width / 210 mm mounting span
- Published torque
- 1.0–4.0 N·m

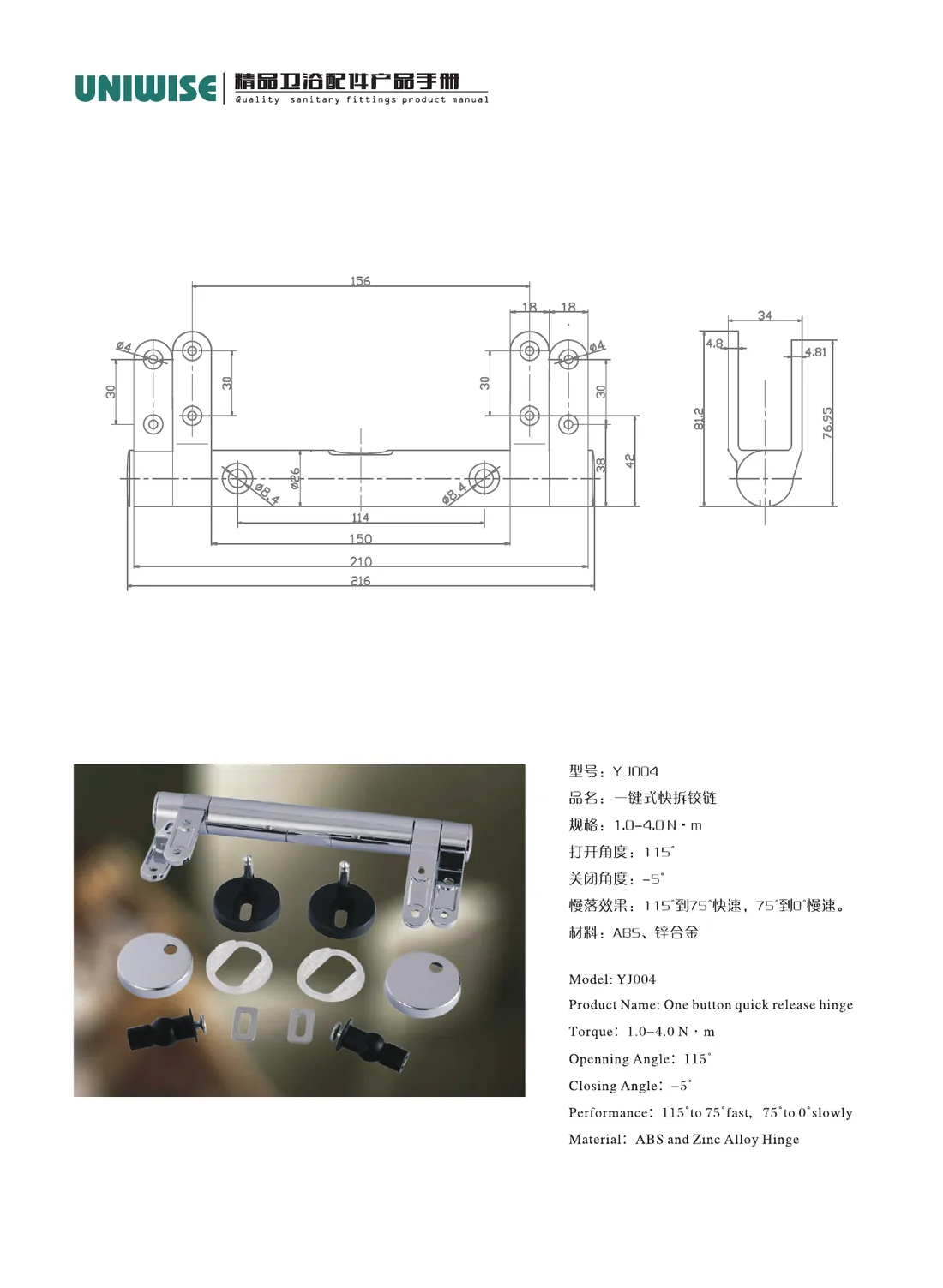

Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 1.0–4.0 N·m
- Rotation
- Left / right soft-close pair
- Operating angle
- Opening 115° / closing -5°
- Dimensions
- 216 mm overall width / 210 mm mounting span
- Shaft / mechanism
- Integrated soft-close mechanism
- Material
- ABS + zinc alloy
- Application
- Toilet seat soft-close system
- MOQ
- Contact us
- Customization
- Special torque customization available

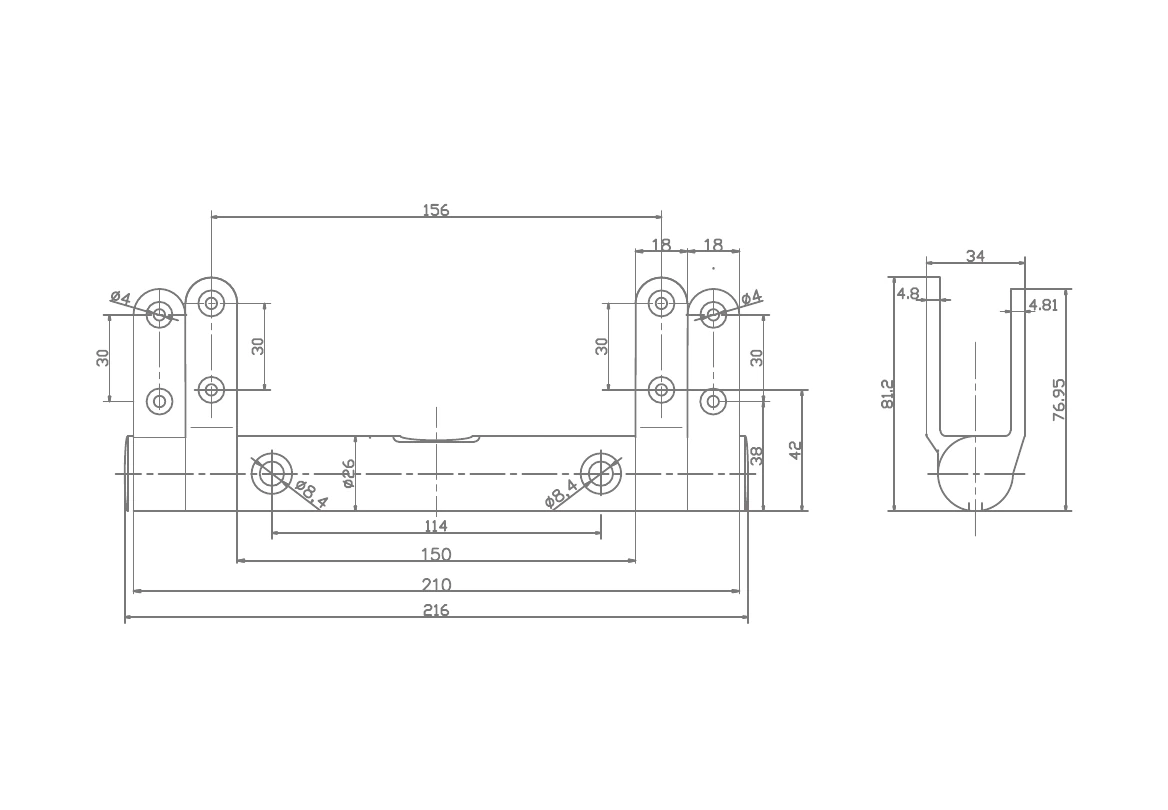

Reference dimensions
These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Overall width: 216 mm
Main mounting span: 210 mm
Other spans: 156 / 150 / 114 mm
Side envelope height: 81.2 mm
Side width: 34 mm
Vertical bracket references: 30 / 42 mm
Technical resources
Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
