Soft-close hinge
YH05Z

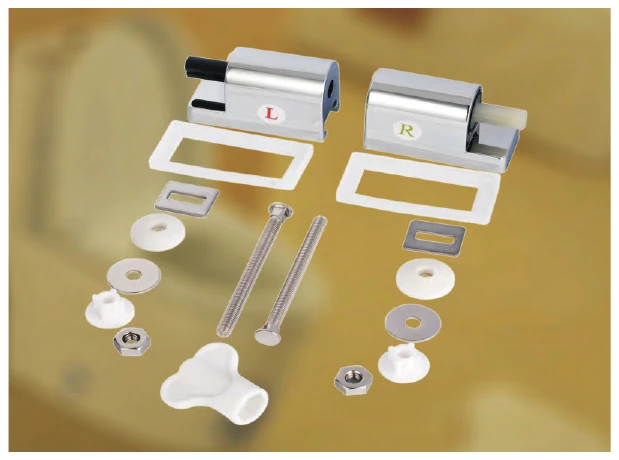

Zinc Alloy Square Hinge
Soft-close toilet seat hinge with catalogue-confirmed dimensions and torque range.
Special torque customization available- Reference dimensions
- 65 mm base length / 46 mm main body
- Published torque
- 1.0–3.0 N·m
Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 1.0–3.0 N·m
- Rotation
- Left / right soft-close pair
- Operating angle
- Opening 115° / closing -5°
- Dimensions
- 65 mm base length / 46 mm main body
- Shaft / mechanism
- Integrated soft-close mechanism
- Material
- Zinc alloy
- Application
- Toilet seat soft-close system
- MOQ
- Contact us
- Customization
- Special torque customization available
Reference dimensions

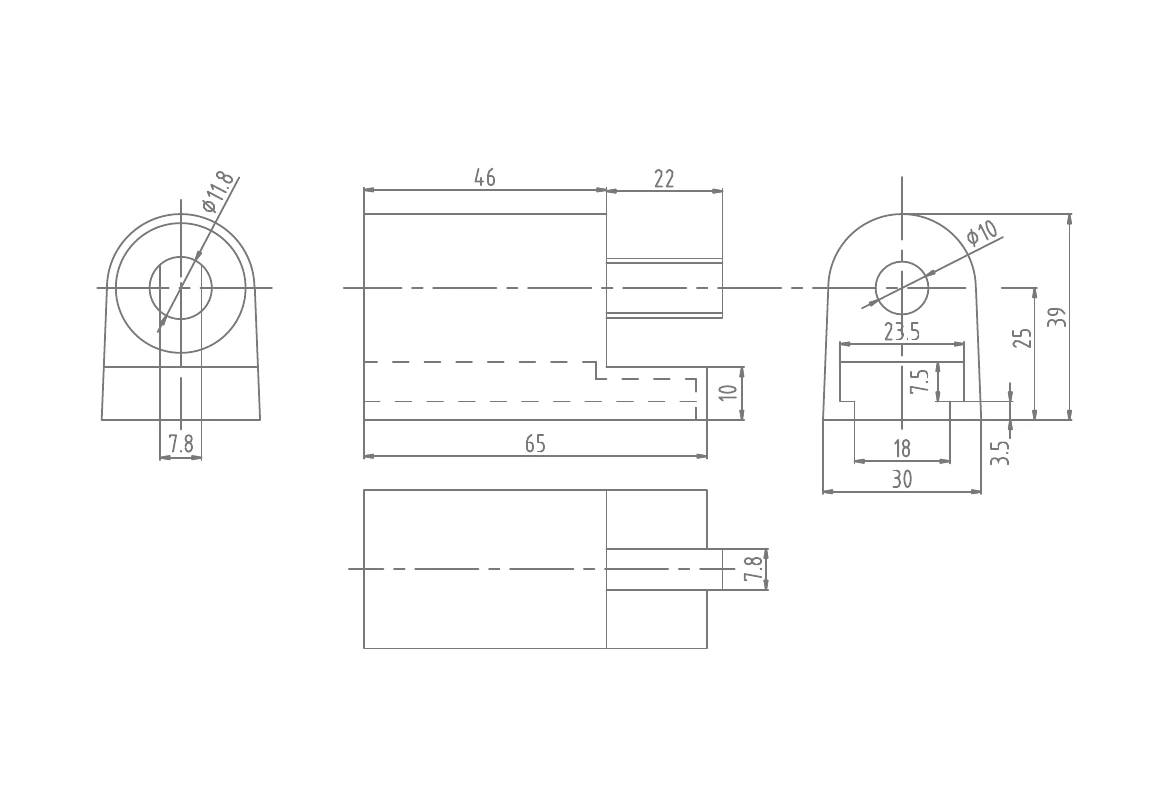

These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Drawing base length: 65 mm
Main body length: 46 mm
Output section: 22 mm
Head: Ø18 mm
Bore: Ø10 mm
Envelope height: 39 mm
Width: 30 mm
Front width: 23.5 mm
Technical resources

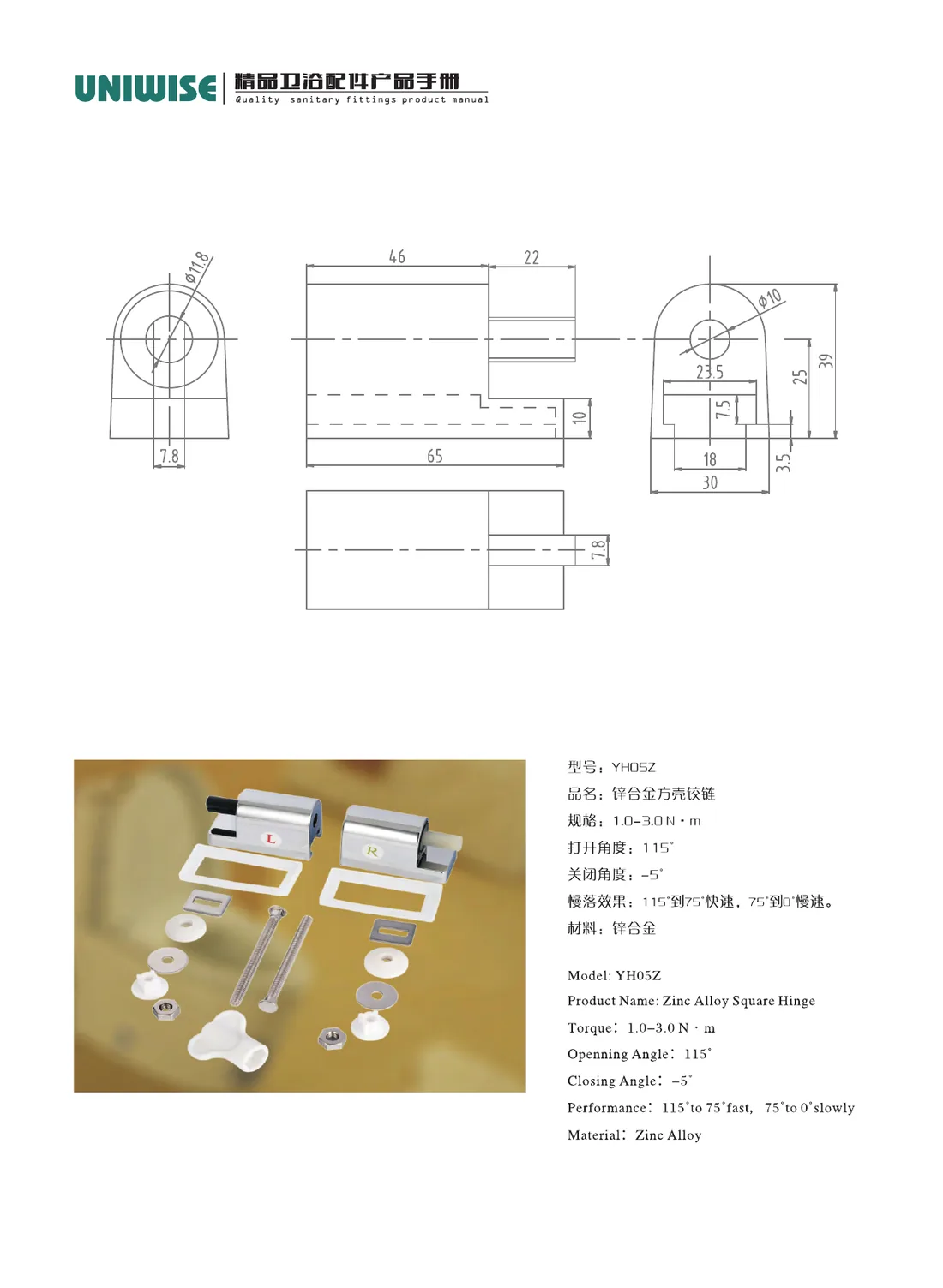

Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
