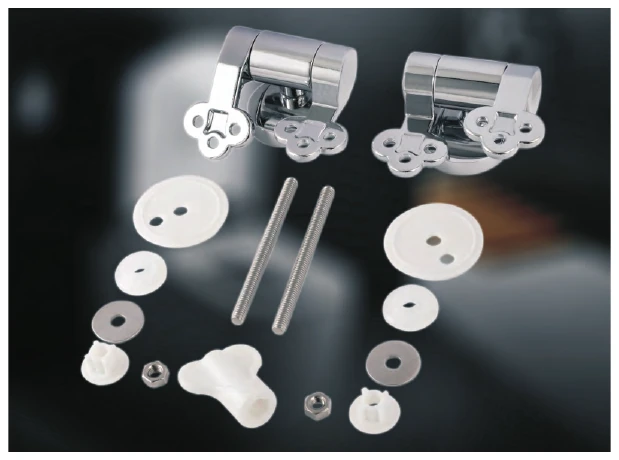

Soft-close hinge
BH21
Club Head Hinge
Soft-close toilet seat hinge with catalogue-confirmed dimensions and torque range.
Special torque customization available- Reference dimensions
- 57.4 mm assembly width / 62.76 mm overall height
- Published torque
- 1.0–4.0 N·m

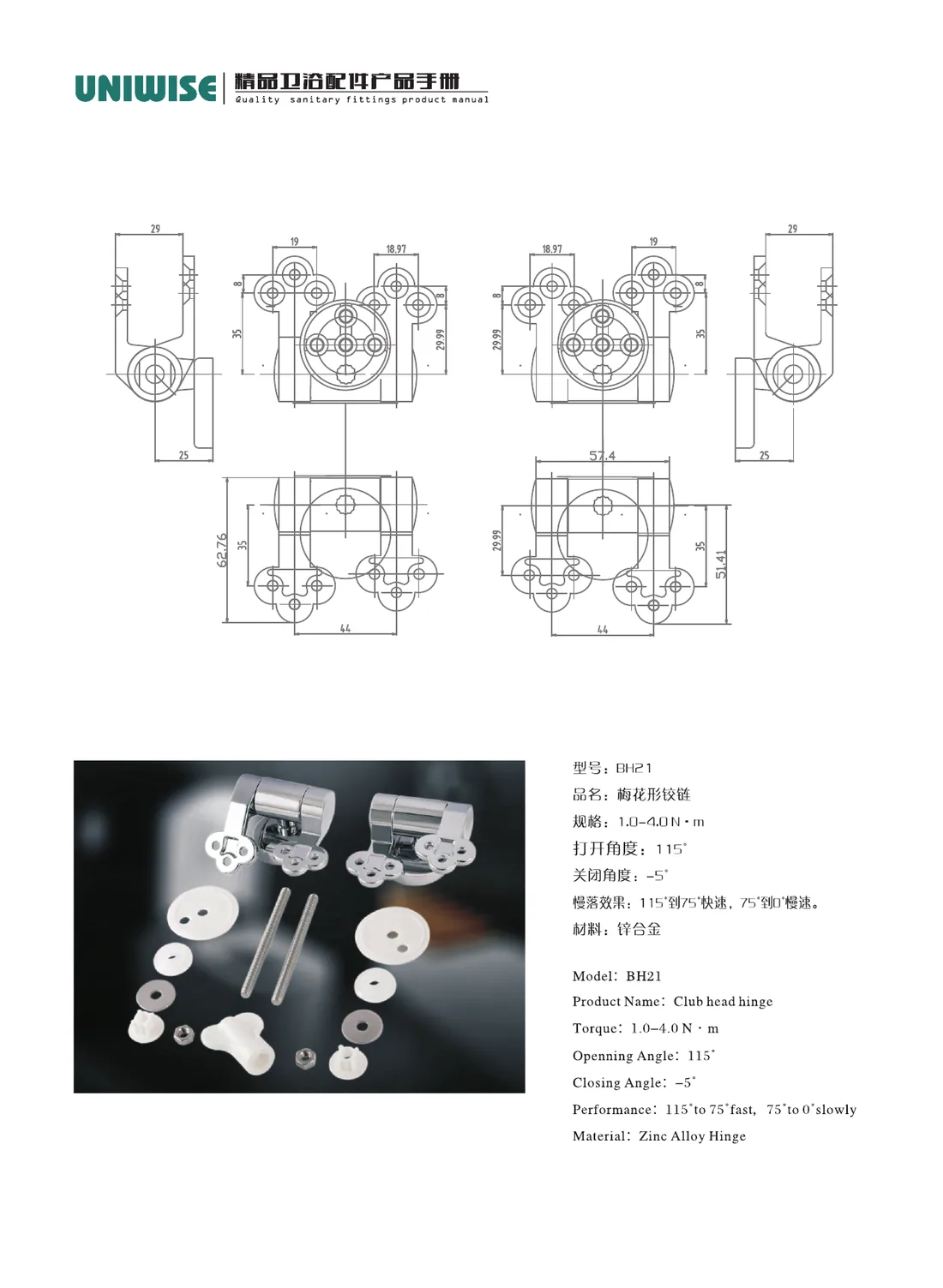

Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 1.0–4.0 N·m
- Rotation
- Left / right soft-close pair
- Operating angle
- Opening 115° / closing -5°
- Dimensions
- 57.4 mm assembly width / 62.76 mm overall height
- Shaft / mechanism
- Integrated soft-close mechanism
- Material
- Zinc alloy
- Application
- Toilet seat soft-close system
- MOQ
- Contact us
- Customization
- Special torque customization available
Reference dimensions

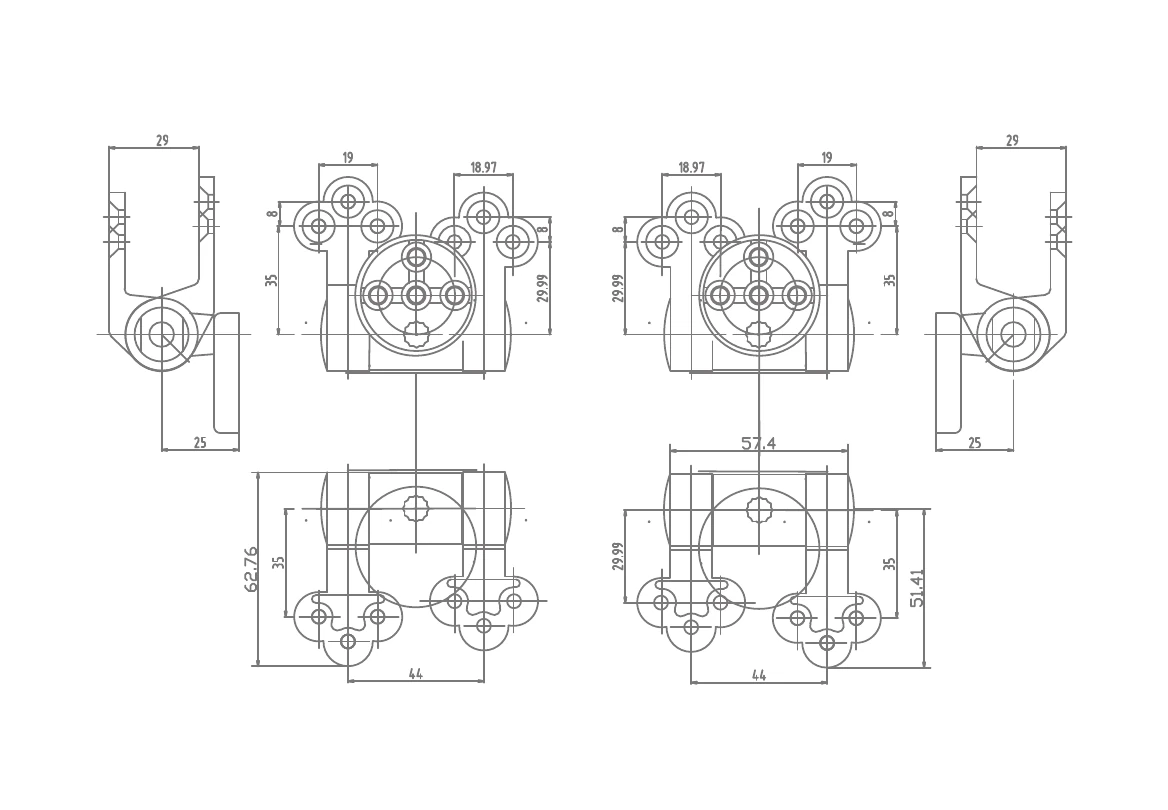

These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Assembly width: 57.4 mm
Overall height: 62.76 mm
Lower mounting span: 44 mm
Side envelope: 29 / 25 mm
Top mounting width: 19 mm
Vertical reference: 35 / 29.99 mm
Technical resources
Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
