Controlled soft closing
WW22H3S

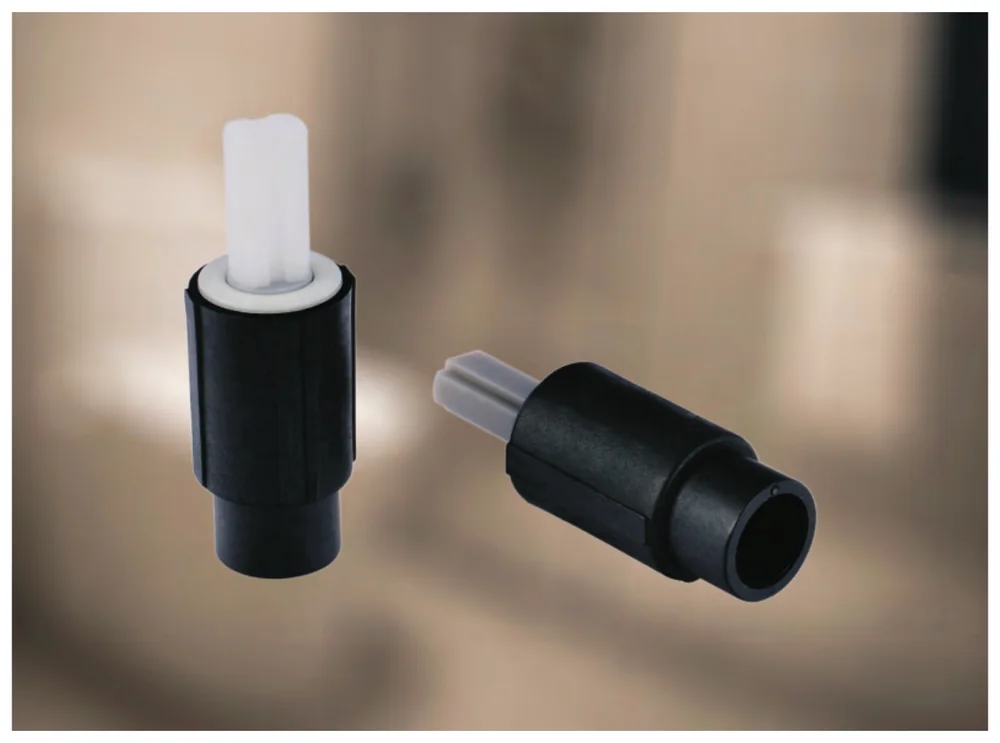

Rotary Damper WW22H3S
Compact rotary damper for controlled soft-close hinge systems.
Special torque customization available- Reference dimensions
- Ø22.5 mm max body / 65 mm overall length
- Published torque
- 1.0–3.0 N·m
Product data

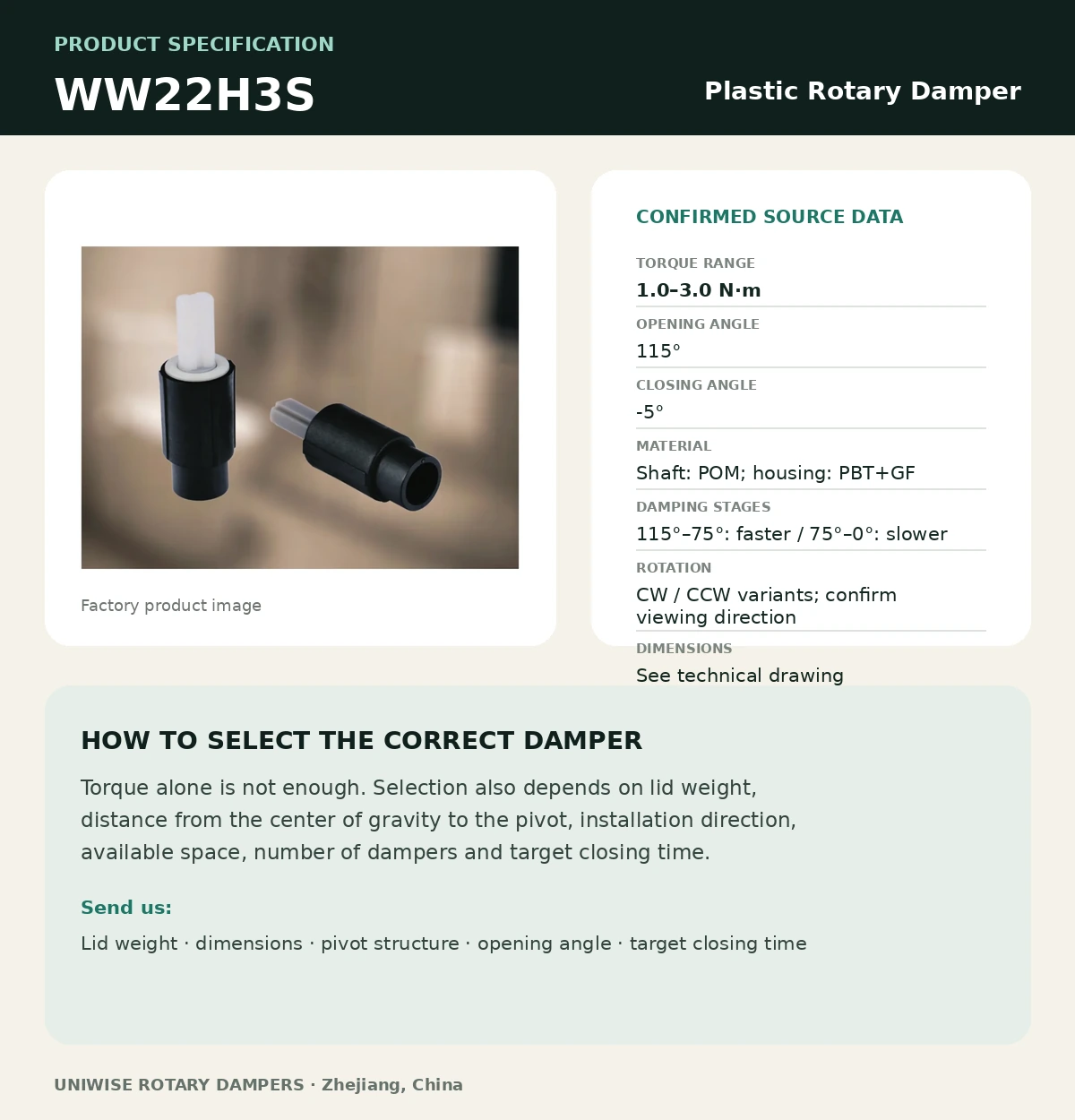

Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 1.0–3.0 N·m
- Rotation
- CW / CCW variants
- Operating angle
- Opening 115° / closing -5°
- Dimensions
- Ø22.5 mm max body / 65 mm overall length
- Shaft / mechanism
- POM
- Material
- Shaft: POM; housing: PBT+GF
- Application
- Toilet seat / appliance / custom lid
- MOQ
- Contact us
- Customization
- Special torque customization available
Reference dimensions

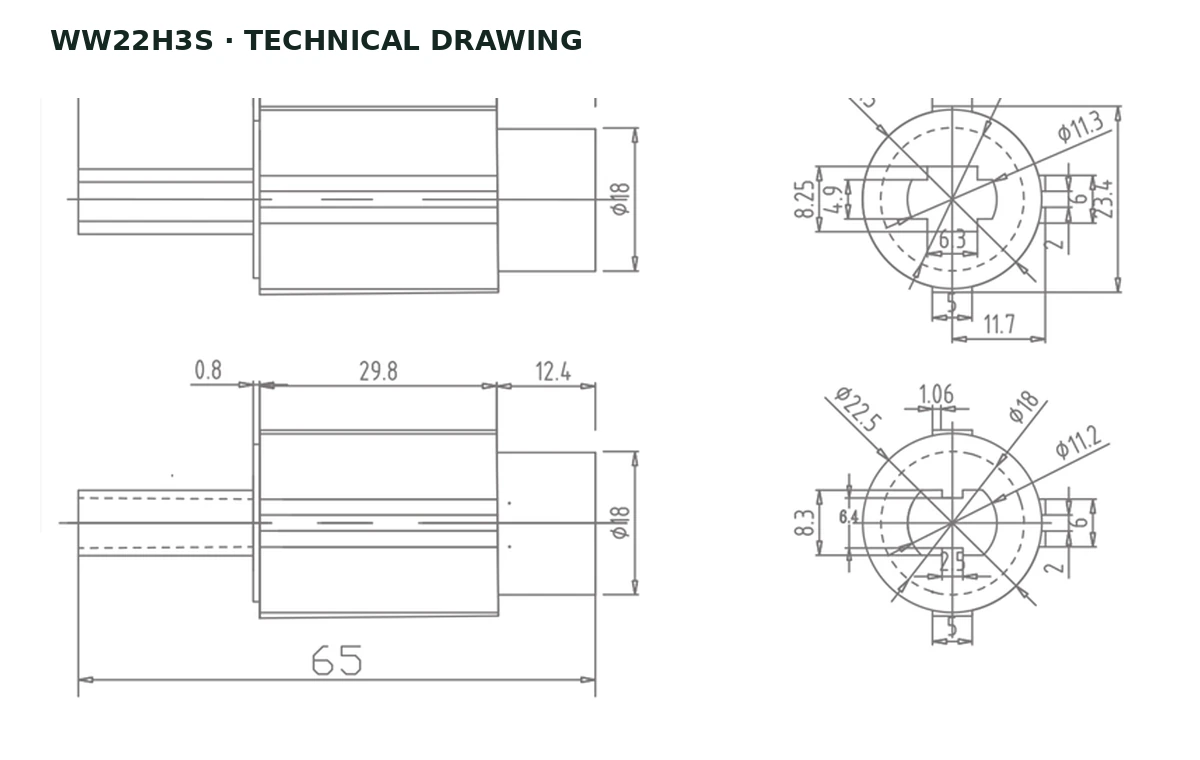

These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Maximum body profile: Ø22.5 mm
Overall length: 65 mm
Central body length: 29.8 mm
Right section: 12.4 mm / Ø18 mm
Drive profiles: Ø11.3 / Ø11.2 mm
Drive flats: approximately 8.25 / 8.3 mm
Technical resources

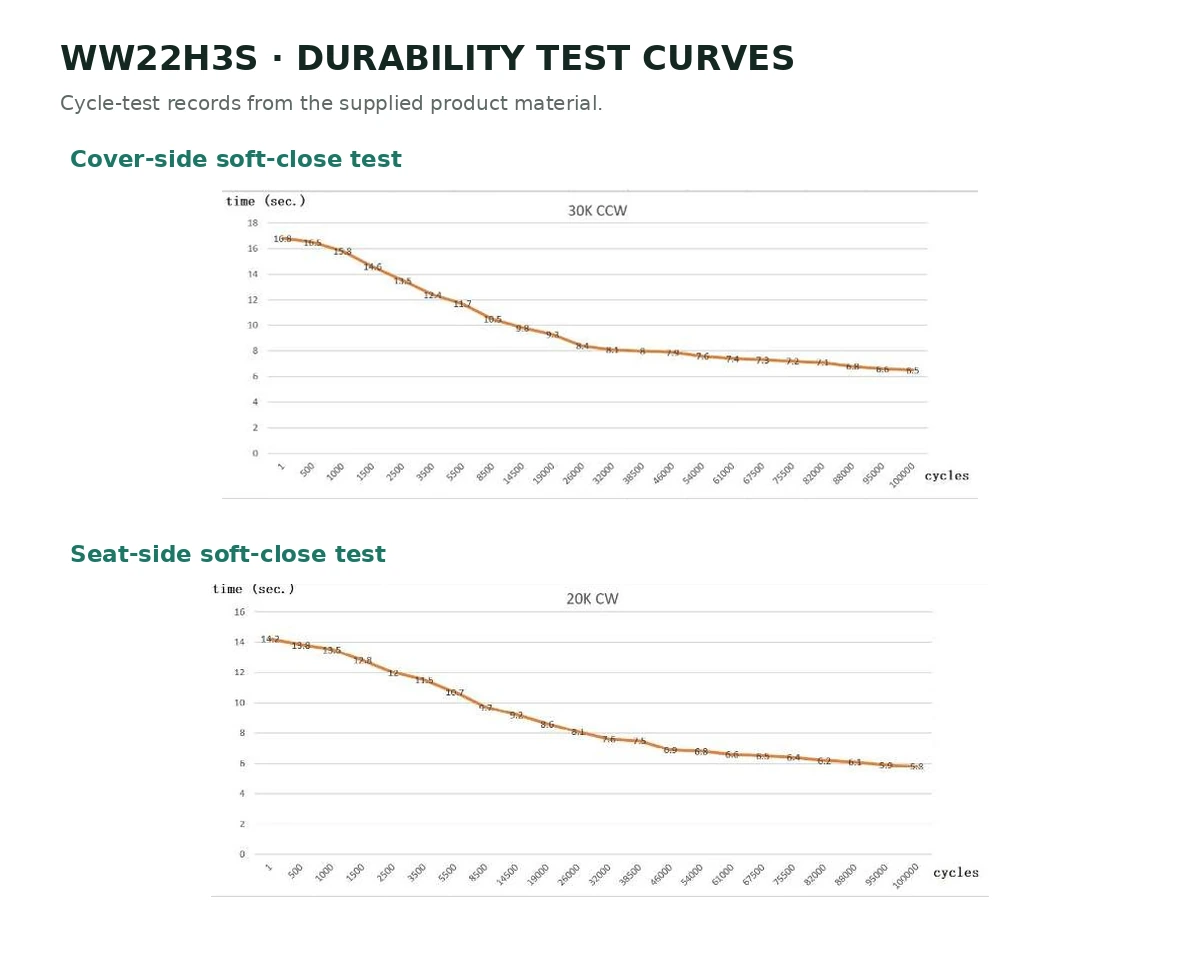

Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
