Controlled soft closing
WW16H

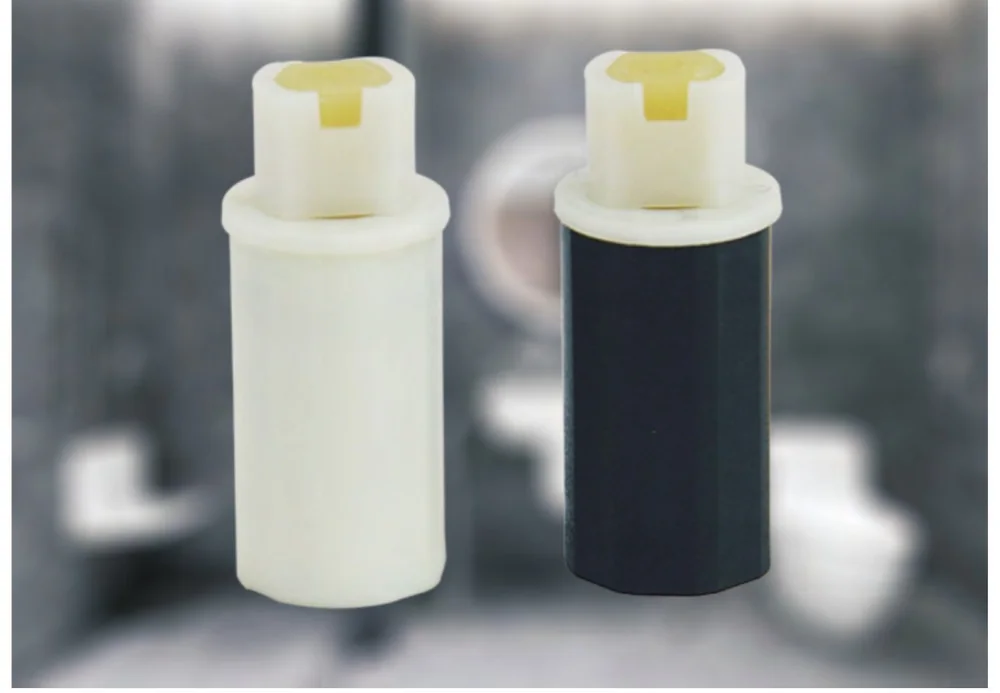

Rotary Damper WW16H
Compact rotary damper for controlled soft-close hinge systems.
Special torque customization available- Reference dimensions
- Ø16.2 mm body / 39.8 mm overall envelope
- Published torque
- 1.0–2.5 N·m

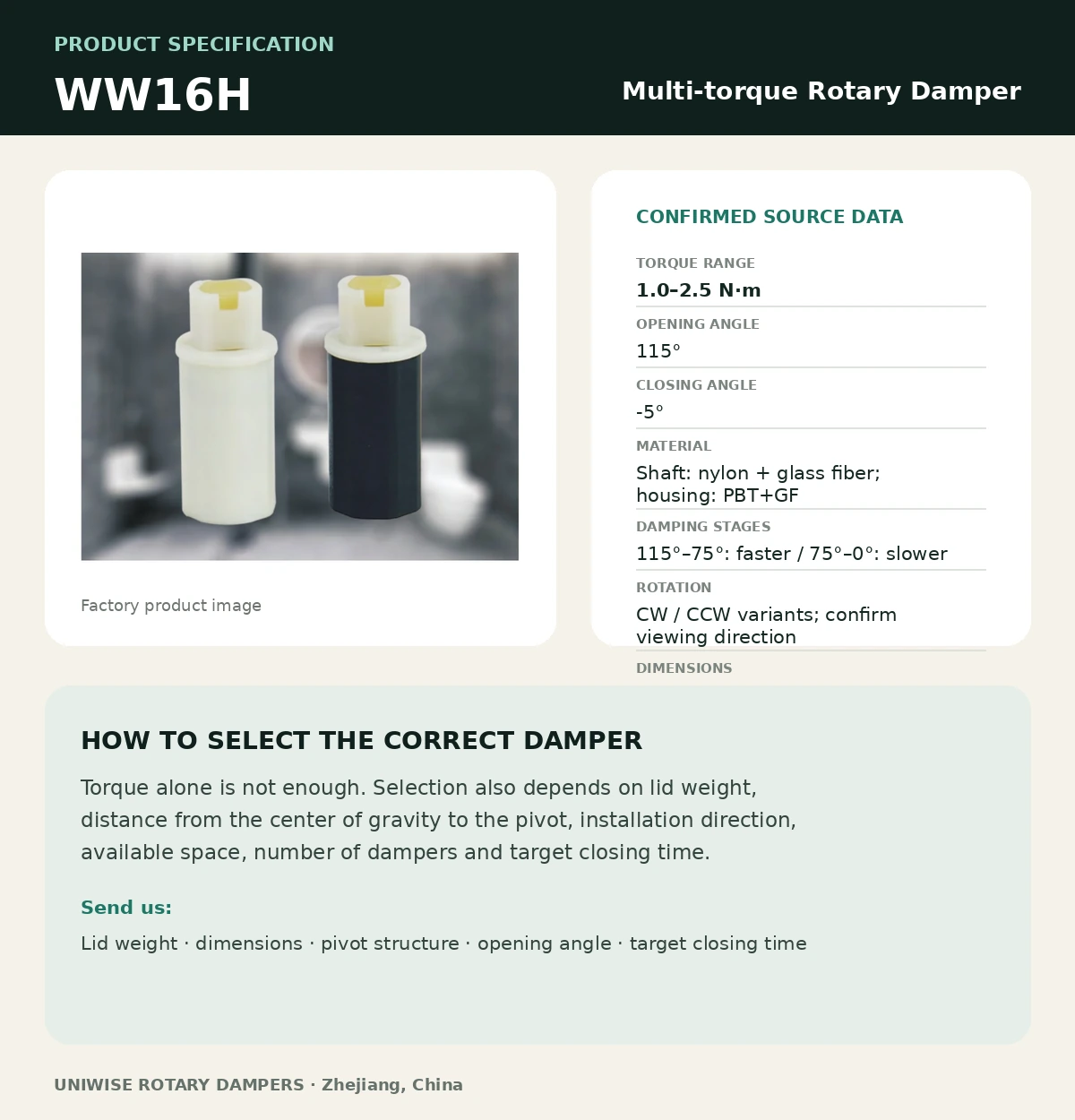

Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 1.0–2.5 N·m
- Rotation
- CW / CCW variants
- Operating angle
- Opening 115° / closing -5°
- Dimensions
- Ø16.2 mm body / 39.8 mm overall envelope
- Shaft / mechanism
- nylon + glass fiber
- Material
- Shaft: nylon + glass fiber; housing: PBT+GF
- Application
- Toilet seat / appliance / custom lid
- MOQ
- Contact us
- Customization
- Special torque customization available
Reference dimensions
These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Outer body: Ø16.2 mm
Overall drawing envelope: 39.8 mm
Front section: 10.0 mm
Main/output envelope: 29.8 mm
Front drive: Ø12.1 mm with 8.6 mm flat
Technical resources
Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
