Position holding / free stop

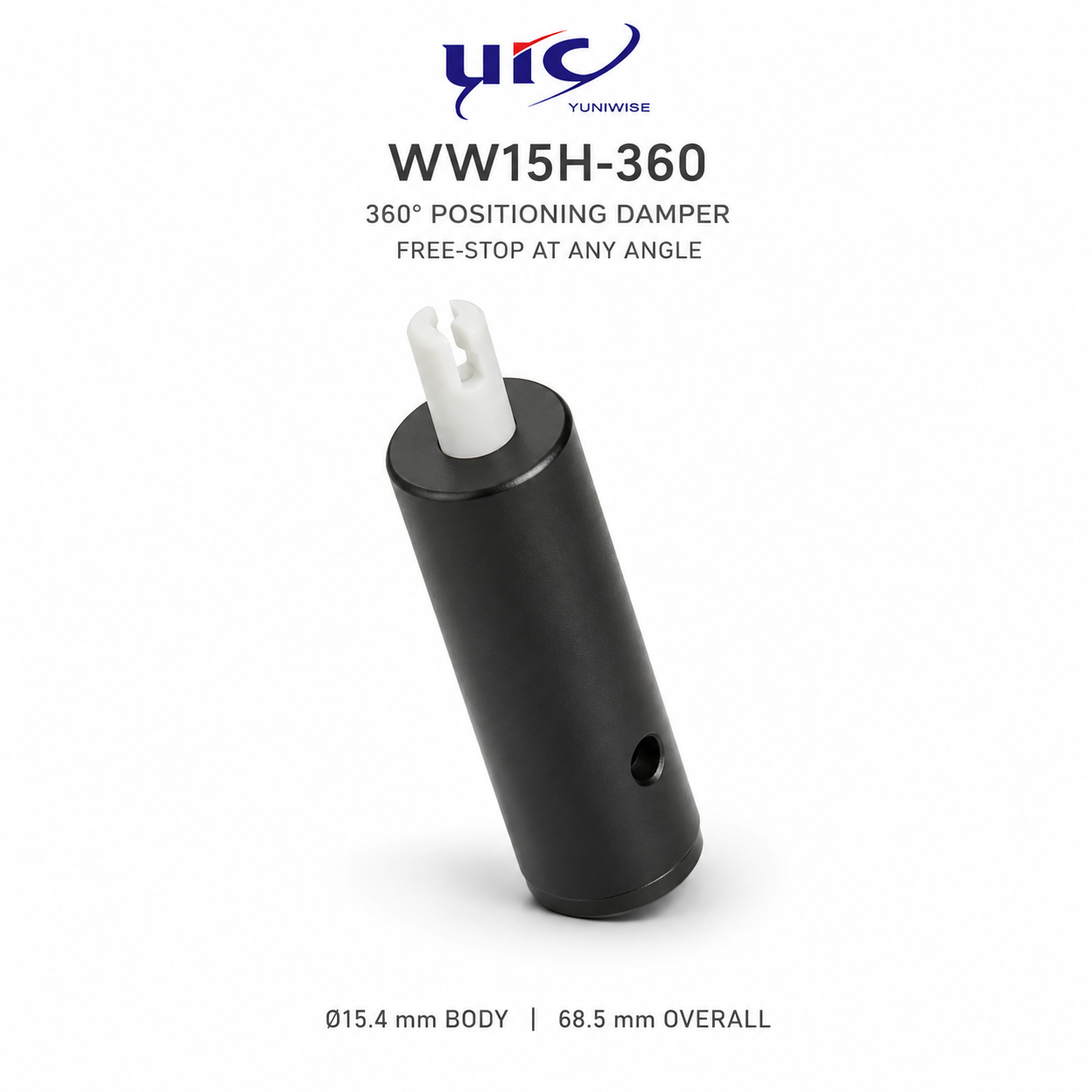

WW15H-360
Compact 360° positioning damper designed for free-stop movement at selected angles.
Special torque customization available- Reference dimensions
- Ø15.4 mm body / 68.5 mm overall length
- Published torque
- 0.07–0.15 N·m
Position holding / free stop: do not select this as a soft-close damper on torque alone. Ask us to confirm the movement required.
Product data
Specifications
These values are published from the current Uniwise product data. Final movement and fit should be confirmed with the actual mechanism and sample testing.
- Torque
- 0.07–0.15 N·m
- Rotation
- 360° positioning / free-stop
- Operating angle
- 360°
- Dimensions
- Ø15.4 mm body / 68.5 mm overall length
- Shaft / mechanism
- Forked drive shaft
- Material
- Engineering polymer assembly
- Application
- Lightweight lids, covers and custom positioning mechanisms
- Customization
- Special torque customization available
- MOQ
- Contact us

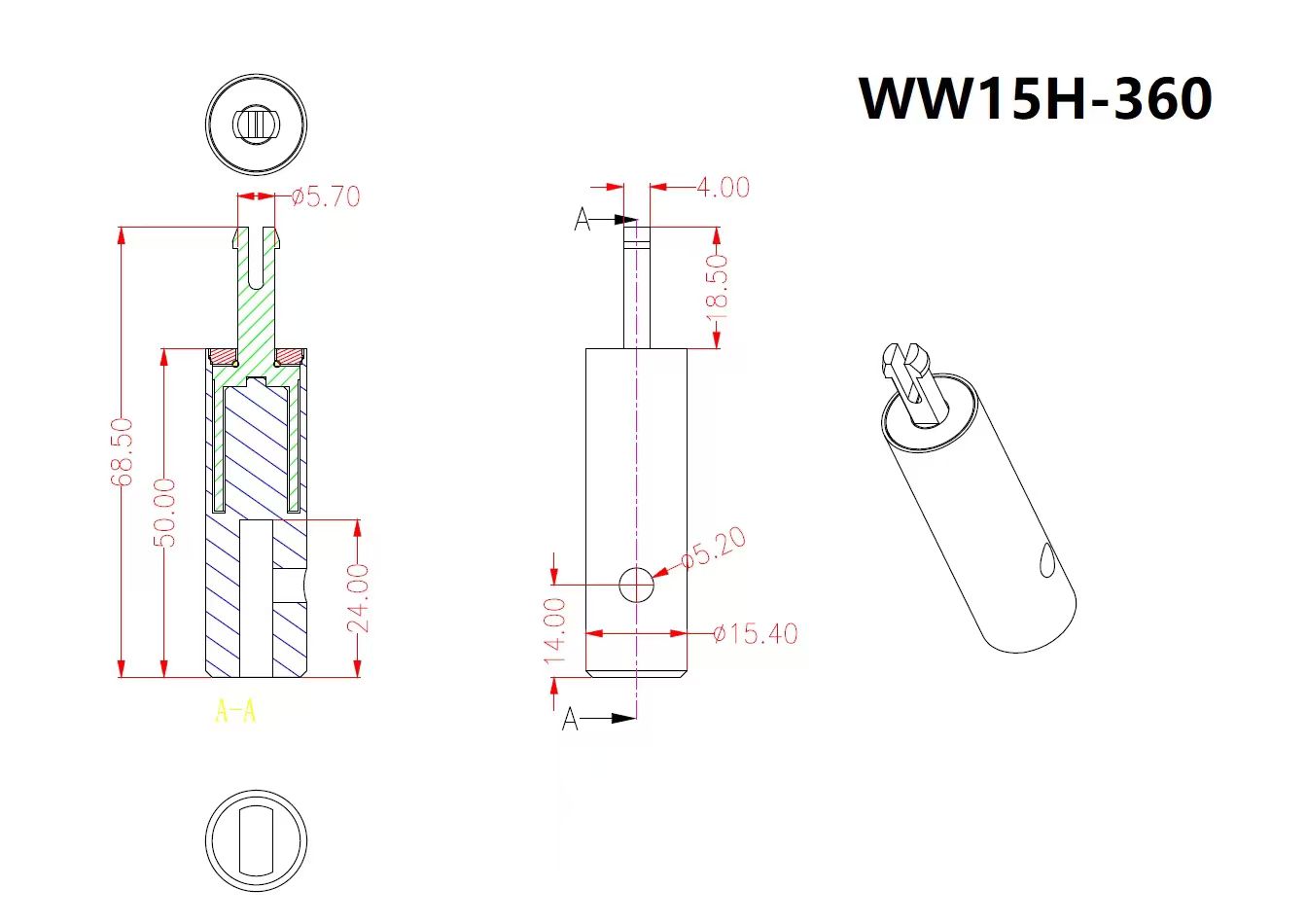

Reference dimensions
These values are transcribed from the technical drawing stored with this product. Use them to screen mechanical fit, then verify the full drawing before tooling or mass production.
Technical resources
Drawings & technical resources
Use the technical drawing as the dimensional reference. Confirm the selected variant, torque test conditions and sample performance before production.
Samples, order quantities & supply information
Application support
Confirm this model for your application.
Send the model number and installation details. We will review the fit and supply options.
